LIGHTER, STRONGER, SMARTER!

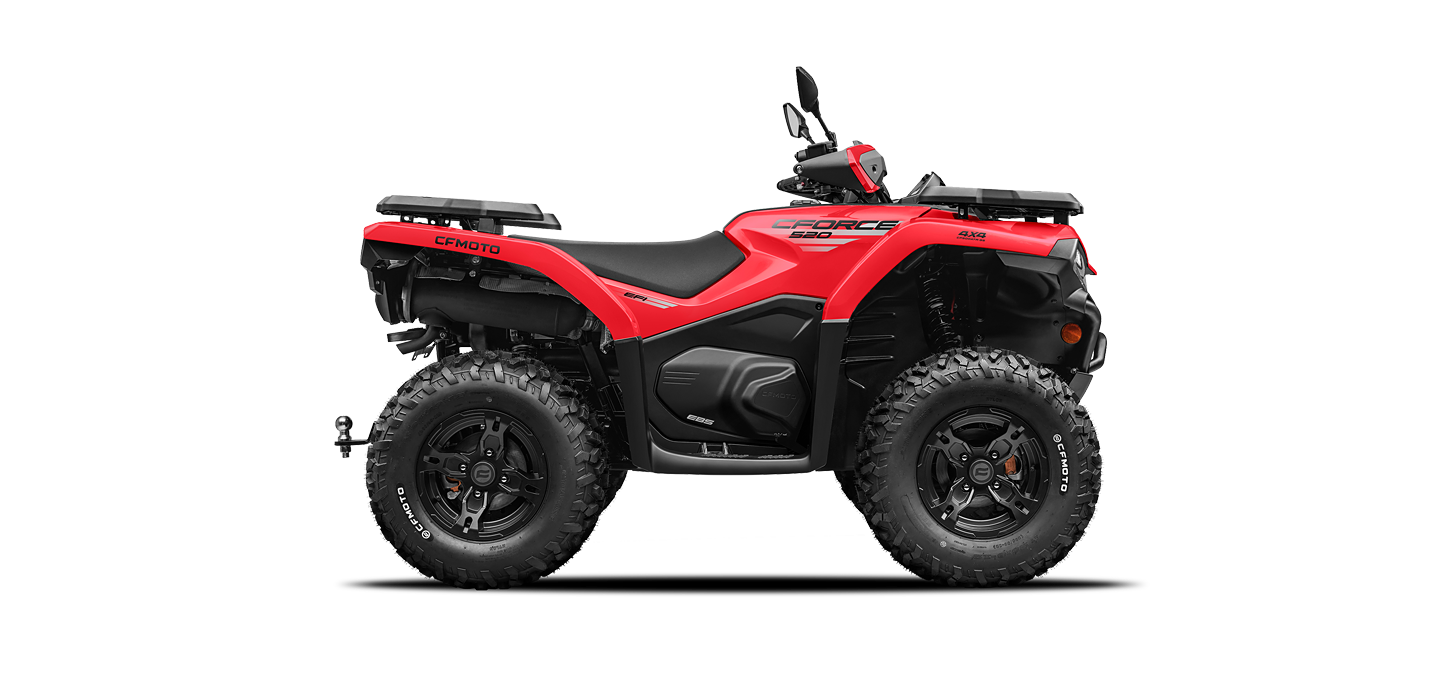

With refinements across the board, the new-generation CFORCE 520 EPS is not only stronger and lighter but has less vibration, a tighter turning circle, is more comfortable and has a smorgasbord of user-friendly attributes such as electronic power steering.LIGHTER, STRONGER, SMARTER!
With refinements across the board, the new-generation CFORCE 520 EPS is not only stronger and lighter but has less vibration, a tighter turning circle, is more comfortable and has a smorgasbord of user-friendly attributes such as electronic power steering.
NUMBERS GAME
CFMOTO has left no stone unturned, and the results are compelling: Stronger than ever with a 612kg towing capacity; 25 per cent tighter turning radius, now down to 5.6 metres one-up; 50 per cent more front and rear rack loading capacity; 30 per cent stronger and 10 per cent lighter frame; 26 per cent more suspension travel; 21 per cent more fuel capacity; 25 per cent less leg area temperature; and reduced vibration through handlebar, footrests and seat.WORK ASSETS
The CFORCE 520’s work-ready attitude starts with the 34hp, 495cc, fuel-injected, four-stroke single-cylinder engine – perfect for the farm – with 2WD/4WD and a locking front differential. Other premium features: Force Red livery, alloy wheels, handguards, LED lights, five-inch LCD dash with Bluetooth connectivity, 2500lb winch, plastic racks and 25-inch tyres.COMFORT ZONE
Comfy while you do work! Ergonomic updates include a more rider-friendly handlebar position, a narrower fuel tank for more leg space – but with fuel capacity still increased to 17 litres! – and 40 per cent thicker seat foam to cushion your tush.TRAVEL PERKS
More ground clearance (up to 262mm) and a 26 per cent increase in suspension travel – now 190mm at the front and 225mm at the rear. New six-ply all-terrain tyres are grippier and sturdier. And if water crossings are your go, the air intake has also been positioned 120mm higher to reduce the fear factor!EASY PEASY
Let’s face it: maintenance isn’t something that creates mega anticipation. CFMOTO knows that, which is why it’s now easier than ever to access vitals such as the fuse box, coolant, brake fluid and air filter. The CVT assembly cover is all one piece, too, only requiring removal for belt replacement.SUPPORT
YOU CAN TRUST
CFMOTO is a brand you can rely on. Backed by a two-year warranty on all ATV models and supported by a national dealer network to keep you going 24/7.MODEL
HIGHLIGHTS
- 34hp, 495cc, single cylinder four-stroke engine- Bosch electronic fuel injection
- CVT transmission
- Engine braking
- Selectable 2WD/4WD
- Push button-locking front differential
- Power steering
- Hydraulic disc brakes
- Double A-Arm, independent suspension
- Coil spring with oil dampening shocks
with preload adjustment
- 12-inch alloy wheels
- 25-inch 6-ply all terrain tyres
- Front and rear carrier racks
- 612kg tow capacity
- 30kg front/60kg rear carrier rack capacity
- 2500lb winch
- 5-inch LCD display
- LED headlights
- Tow package, indicators, horn, mirrors and handguards
- Two-year warranty
- Available in Force Red
NUMBERS GAME
CFMOTO has left no stone unturned, and the results are compelling:
WORK ASSETS
The CFORCE 520’s work-ready attitude starts with the 28.3kW (38hp) 495cc, fuel-injected, four-stroke single-cylinder engine – perfect for the farm – with 2WD/4WD and a locking front differential. Other premium features: Force Red livery, alloy wheels, handguards, LED lights, five-inch LCD dash with Bluetooth connectivity, 2500lb winch, plastic racks and 25-inch tyres.
COMFORT ZONE
Comfy while you do work! Ergonomic updates include a more rider-friendly handlebar position, a narrower fuel tank for more leg space – but with fuel capacity still increased to 17 litres! – and 40 per cent thicker seat foam to cushion your tush.br>
TRAVEL PERKS
More ground clearance (up to 254mm) and a 26 per cent increase in suspension travel – now 190mm at the front and 225mm at the rear. New six-ply all-terrain tyres are grippier and sturdier. And if water crossings are your go, the air intake has also been positioned 120mm higher to reduce the fear factor!
EASY PEASY
Let’s face it: maintenance isn’t something that creates mega anticipation. CFMOTO knows that, which is why it’s now easier than ever to access vitals such as the fuse box, coolant, brake fluid and air filter. The CVT assembly cover is all one piece, too, only requiring removal for belt replacement.
SUPPORT YOU
CAN TRUST
CFMOTO is a brand you can rely on. Backed by a two-year warranty on all ATV and UTV models and supported by a national dealer network to keep you going 24/7.
SPECIFICATIONS
SPECIFICATIONS
| Engine type: | Four-stroke single-cylinder | Displacement: | 495cc | Maximum power: | 38hp (28.3kW) at 7,000rpm | Maximum torque: | 39Nm at 5,750rpm | Fuel system: | Bosch EFI | Transmission: | CVT | Drive: | H-L-N-R-Park | 4WD: | 2WD/4WD with locking front differential | Rear differential: | Fixed | Steering: | Power | |
CFMOTO
A global manufacturing powerhouse, CFMOTO has been producing quality powersports products for more than 30 years and is the largest exporter of ATVs and UTVs in China. The company's core values are continual improvement, innovation and quality - values that permeate throughout its global distribution network in Europe, north and south America, Canada, Africa and China.*4.99% p.a. interest rate fxed for the 24-month term of the loan. An upfront deposit of 1/3 of the RRP, a $130 UDC establishment fee, a $10.35 PPSR fee, a monthly maintenance fee of $2 and a $300 dealer origination fee apply. Two further payments of 1/3 of the RRP are to be paid on the 12-month loan anniversary and the 24-month loan anniversary. This offer is only available on
CFMOTO CFORCE 520 EPS purchased between 21 October 2024 and 31 December 2024 (while stocks last). The loan is provided by UDC Finance Limited. UDC’s lending criteria, standard terms and conditions apply. This offer is available through Approved CFMOTO dealers only and cannot be used in conjunction with any other discounts or offers.
^Ride away prices quoted exclude GST.
