UFORCE 600 EPS - NZ

THE STRONGER
ALL-ROUNDER

The all-new UFORCE 600 is a package that represents a quantum leap in design, performance and ergonomics, with key updates including electronic hill descent control and a limited slip rear differential. The UFORCE 600 EPS is truly the stronger all-rounder and is ready for duty.

UFORCE 600 EPS - NZ

THE STRONGER
ALL-ROUNDER


The all-new UFORCE 600 is a package that represents a quantum leap in design, performance and ergonomics, with key updates including electronic hill descent control and a limited-slip rear differential. The UFORCE 600 EPS is truly the stronger all-rounder and is ready for duty.



ENGINE ROOM

The 580cc, liquid-cooled, fuel-injected engine produces maximum torque and power at much lower revs than the UFORCE 550, so it hardly raises a sweat. Alongside 2WD/4WD, the engine has two drive modes and is mated to a Canadian CVTech transmission with electronic hill descent control (engine braking).

BRAKING STRIDES

The electronic hill descent control takes the ‘nerve-jangling’ part out of a steep hill and also means less wear and tear on the brakes.

LIMITED-SLIP DIFFERENTIAL

Tired of ripping up your paddocks when you put the foot down? CFMOTO’s limited-slip rear differential (LSD) will help out, and it’s all an automatic process, too: no button to press.

BENCH SEAT

Plenty of in cab space with an all-new bench seat configuration. The seat’s also adjustable for the driver, as is the steering wheel tilt.

THE STRONGER
ALL-ROUNDER

Hard work is wired into the UFORCE 600’s DNA with a cargo bed capacity of 250kg and a towing capacity of 680kg.

EASY ACCESS

The front panel tilts 120 degrees to check coolant levels and undertake more complex maintenance, and the rear cargo box can be tilted 50 degrees to give the engine the once over.

HIDDEN GEMS

A whopping 96 litres in the enclosed storage bins, most under the large bench seat.

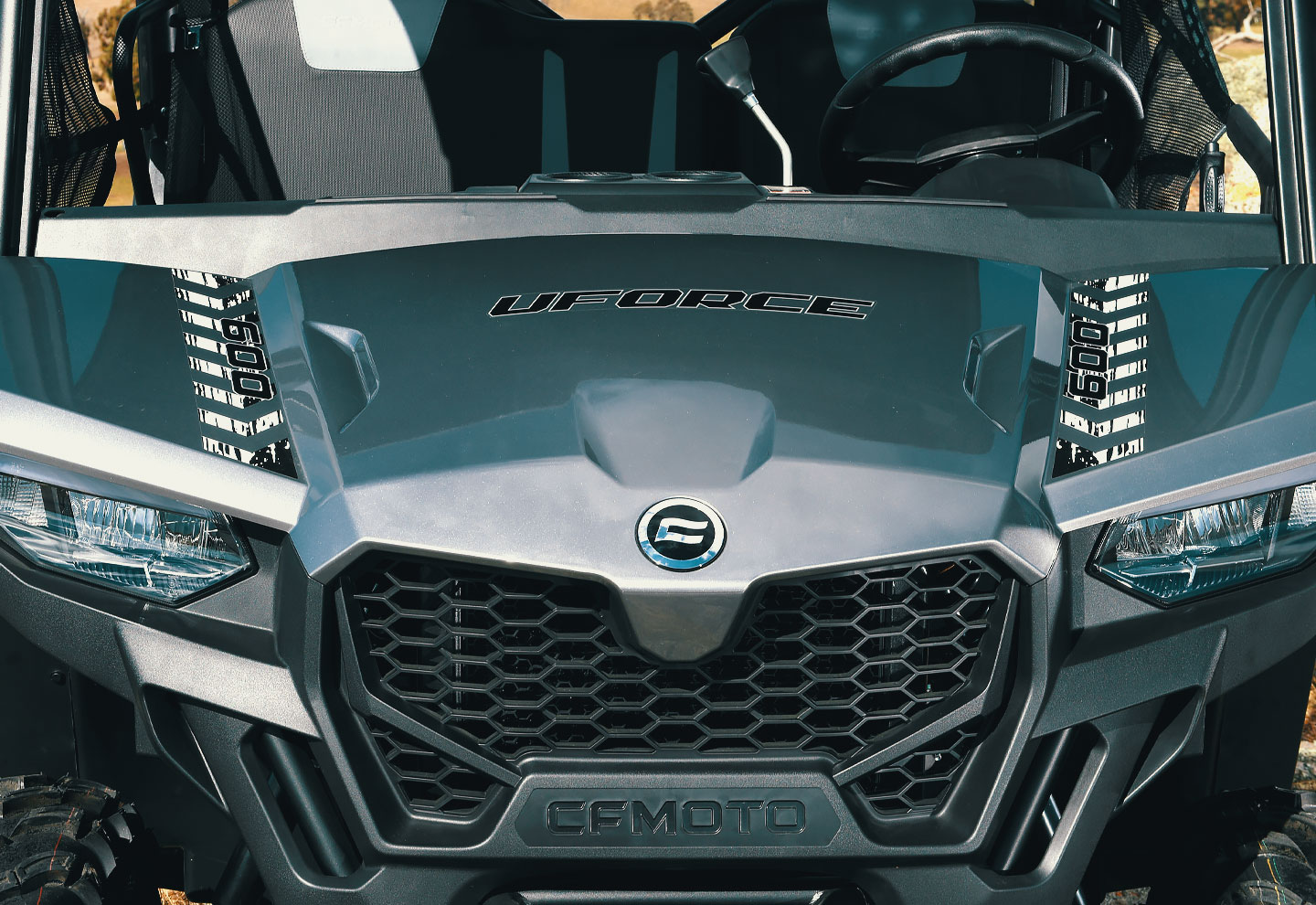

PREMIUM APPEARANCE

New front-end design, premium paint and aluminium wheels add an extra layer of style.

SUPPORT
YOU CAN TRUST

CFMOTO is a brand you can rely on. Backed by a two-year warranty on all ATV and UTV models and supported by a national dealer network to keep you going 24/7.

MODEL
HIGHLIGHTS

- 41hp, 580cc, single-cylinder four-stroke engine
- Bosch electronic fuel injection (EFI)
- Canadian CVTech Transmission
- Electronic hill descent control
- Electronic power steering (EPS)
- Selectable 2WD/4WD
- Push button-locking front differential
- Rear limited-slip differential (LSD)
- Dual A-Arm independent suspension
- 4-wheel hydraulic disc brakes
- 12-inch alloy wheels
- 25-inch six-ply INNOVA tyres
- Bench seat with driver seat adjustability
- 96 litres of in-cabin storage
- 35-litre fuel tank
- Large gas-assisted tipping cargo tray
- CFMOTO roof kit
- 3500lb winch
- 680kg tow capacity
- 250kg rear tray carrier capacity
- Tow pack, indicators, horn, side mirrors
- Available in Titanium Grey
- 2-year warranty

UFORCE 600 EPS - NZ

ENGINE ROOM

The 580cc, liquid-cooled, fuel-injected engine produces maximum torque and power at much lower revs than the UFORCE 550, so it hardly raises a sweat. Alongside 2WD/4WD, the engine has two drive modes and is mated to a Canadian CVTech transmission with electronic hill descent control (engine braking).

UFORCE 600 EPS - NZ

BRAKING STRIDES

The electronic hill descent control takes the ‘nerve-jangling’ part out of steep terrain, and also means less wear and tear on the brakes.

UFORCE 600 EPS - NZ

LIMITED-SLIP DIFFERENTIAL

Tired of ripping up your paddocks when you put the foot down? CFMOTO’s limited-slip rear differential (LSD) will help out, and it’s all an automatic process, too: no button to press.

UFORCE 600 EPS - NZ

BENCH SEAT

Plenty of in cab space with an all-new bench seat configuration. The seat’s also adjustable for the driver, as is the steering wheel tilt.

UFORCE 600 EPS - NZ

THE STRONGER ALL-ROUNDER

Hard work is wired into the UFORCE 600’s DNA with a cargo bed capacity of 250kg and a towing capacity of 680kg.

UFORCE 600 EPS - NZ

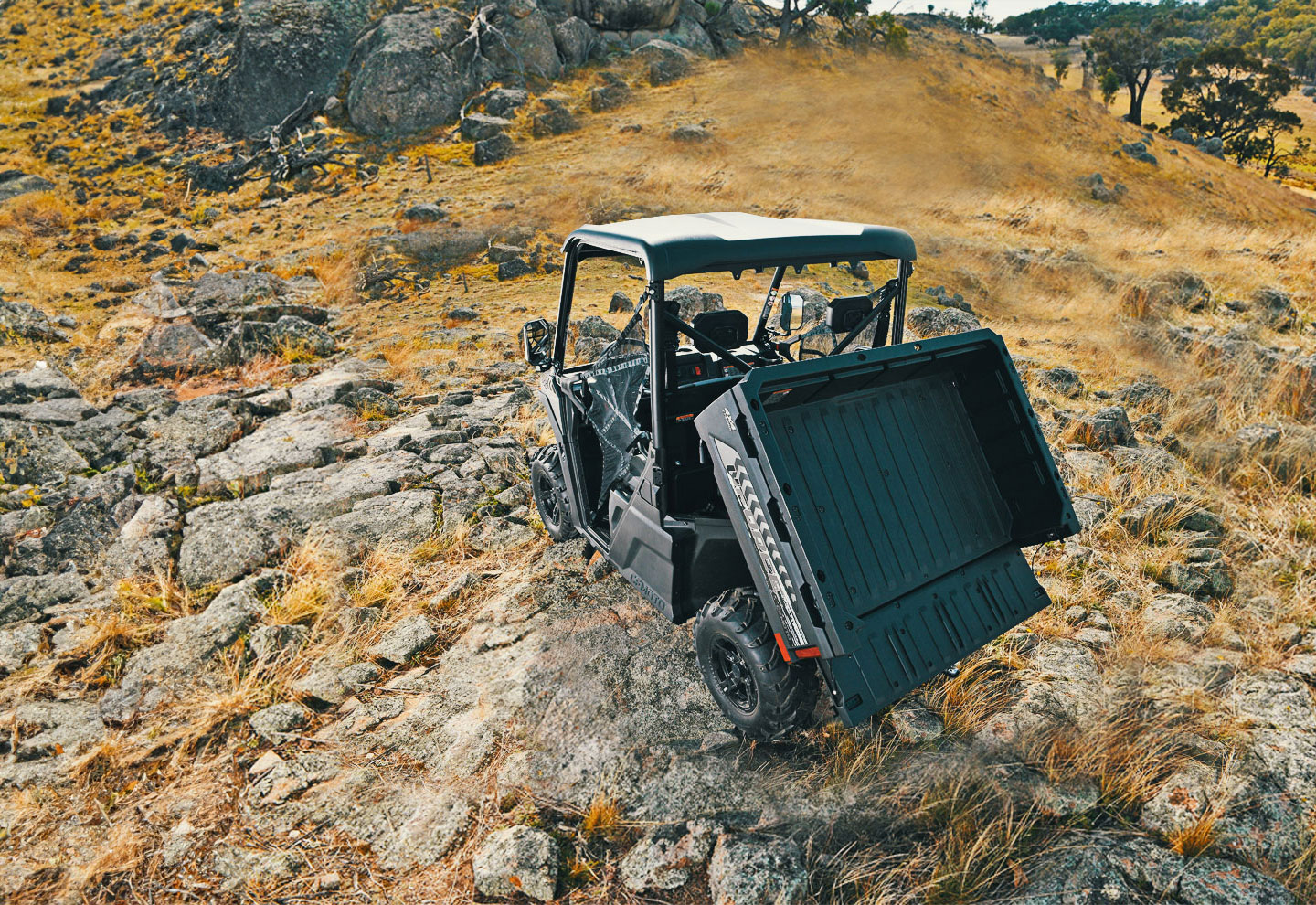

EASY ACCESS

The front panel tilts 120 degrees to check coolant levels and undertake more complex maintenance, and the rear cargo box can be tilted 50 degrees to give the engine the once over.

UFORCE 600 EPS - NZ

HIDDEN GEMS

A whopping 96 litres in the enclosed storage bins, most under the large bench seat.

UFORCE 600 EPS - NZ

PREMIUM APPEARANCE

New front-end design, premium paint and aluminium wheels add an extra layer of style.

UFORCE 600 EPS - NZ

SUPPORT YOU
CAN TRUST

CFMOTO is a brand you can rely on. Backed by a two-year warranty on all ATV and UTV models and supported by a national dealer network to keep you going 24/7.

UFORCE 600 EPS - NZ

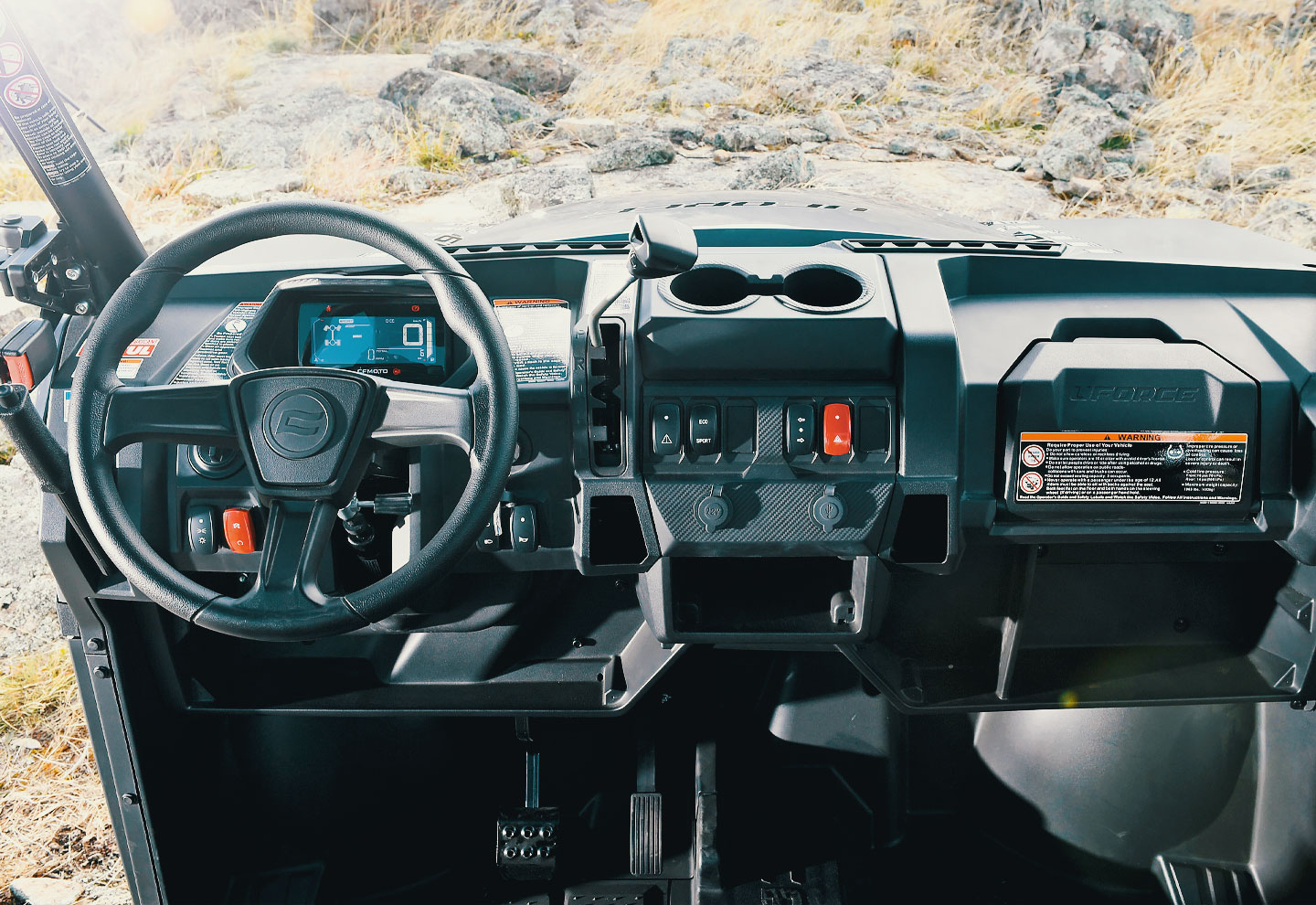

CABIN

  • Spacious bench seat
  • 96 litres of in-cabin storage
  • Easy reach gear shifter with L-H-N-R range
  • Separate easy-reach handbrake
  • Selectable 2WD/4WD and locking front differential all at the touch of a button

UFORCE 600 EPS - NZ

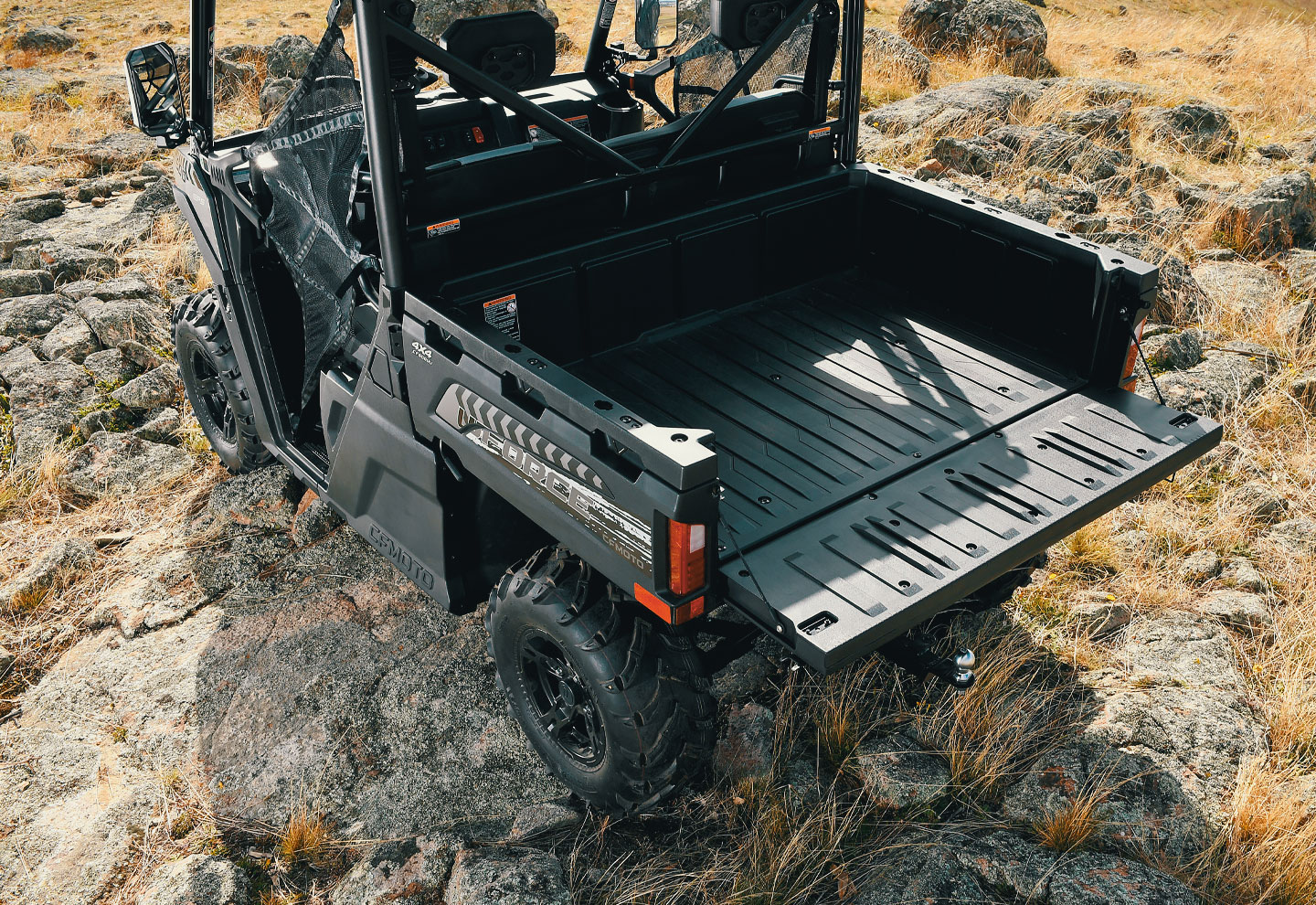

CARGO

  • Gas-assisted tipping rear cargo tray with a 250kg capacity
  • Handy integrated tie-down locations and CF-Connect accessory mounting points
  • 680kg towing capacity with tow package included as a standard feature

UFORCE 600 EPS - NZ

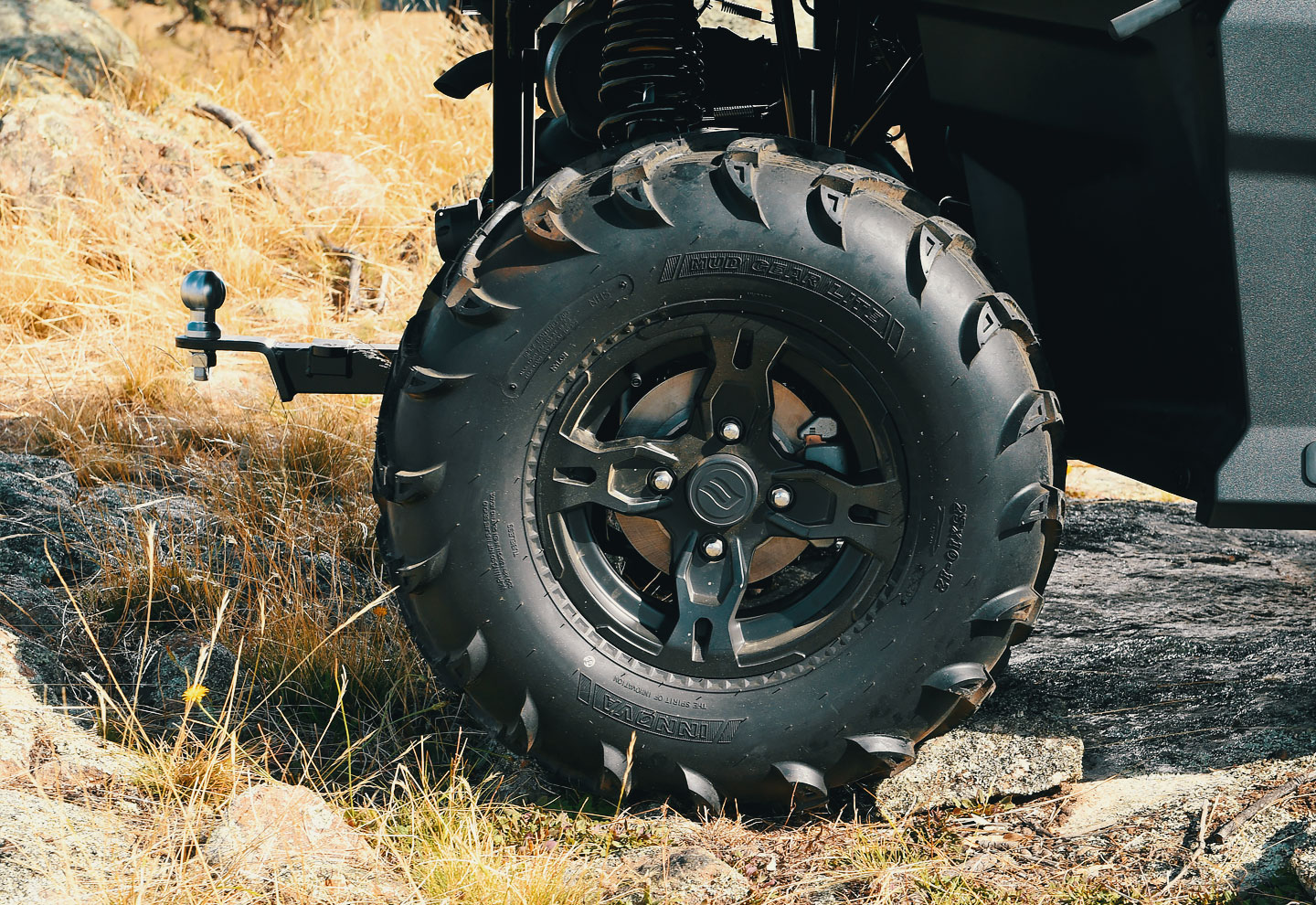

WHEELS

  • 12-inch black alloy wheels
  • 25-inch six-play INNOVA tyres
  • At the rear the UFORCE 600 EPS comes with a limited-slip differential (LSD) to help prevent tearing up your turf

UFORCE 600 EPS - NZ

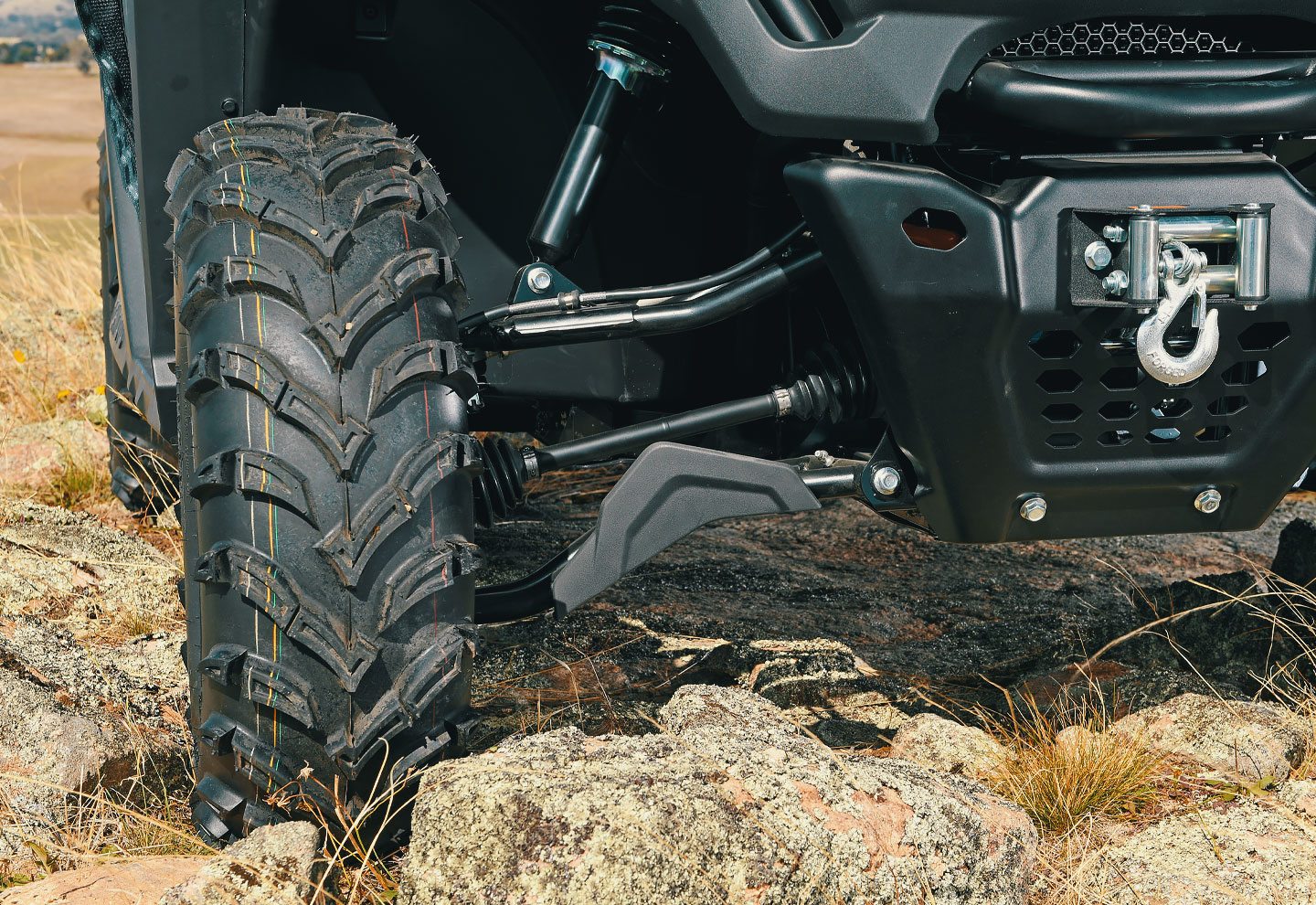

SUSPENSION

  • Electronic power steering (EPS)
  • Double A-Arm independent suspension both front and rear
  • Coil spring shock absorbers with oil dampening and five-position preload adjustment
  • 4-wheel hydraulic disc brakes
  • 270mm ground clearance

UFORCE 600 EPS - NZ
ENGINE

  • 41hp, 580cc, liquid cooled, Bosch EFI, single-cylinder four-stroke engine
  • Two drive modes: Normal / Work
  • Tough Canadian CVTech transmission
  • Electronic hill descent control
  • A large 35-litre fuel tank

UFORCE 600 EPS - NZ
SAFETY

  • ROPS-certified roll cage
  • Seat belts
  • Occupant side nets
  • CFMOTO roof kit
  • Full lights package including indicators, horn and side mirrors

UFORCE 600 EPS - NZ SPECIFICATIONS

UFORCE 600 EPS - NZ SPECIFICATIONS


ENGINE & TRANSMISSION

Engine type:Liquid-cooled, fuel-injected, SOHC, four-valve, four-stroke single-cylinder
Displacement:580cc
Maximum power:41hp (31kW) at 6250rpm
Maximum torque:62Nm at 4750rpm
Fuel system:Bosch EFI
Transmission:Canadian CVTech
Drive:H-L-N-R-Park
Driver assistance:Electronic hill descent control
Drive Modes:2 drive modes: Normal/Work
4WD:2WD/4WD with locking front differential
Rear differential:Limited-slip
Steering:Power


SUSPENSION & BRAKES

Front suspension:Double A-Arm, independent
Rear suspension:Double A-Arm, independent
Shock absorbers:Coil spring with oil dampening, five-position preload adjustment
Brakes:Four-wheel hydraulic disc brakes


WHEELS & TYRES

Wheels:12-inch alloy
Tyres:25-inch six-ply


DIMENSIONS

L x W x H:2820 x 1470 x 1950mm
Wheelbase:1950mm
Ground clearance:270mm
Tray dimensions (W x D x H):1300 x 870 x 275mm
Dry weight:570kg


LOAD

Towing capacity:680kg
Carrying capacity:250kg
Roll cage:ROPS-certified
Persons:Two
Fuel capacity:35L


HIGHLIGHTS

Roof kit:Yes
Winch:Yes
Downhill descent control:Yes
Limited-slip differential:Yes
Bench seat:Yes
Storage:96lt, in cabin


OTHER

Colour:Titanium Grey
Warranty:Two years
Tow package, horn, lights and side mirrors:Yes

UFORCE 600 EPS - NZ

CFMOTO

A global manufacturing powerhouse, CFMOTO has been producing quality powersports products for more than 30 years and is the largest exporter of ATVs and UTVs in China. The company's core values are continual improvement, innovation and quality: traits that permeate throughout its global distribution network in Europe, north and south America, Canada, Africa and China.
