MIDDLEWEIGHT 800

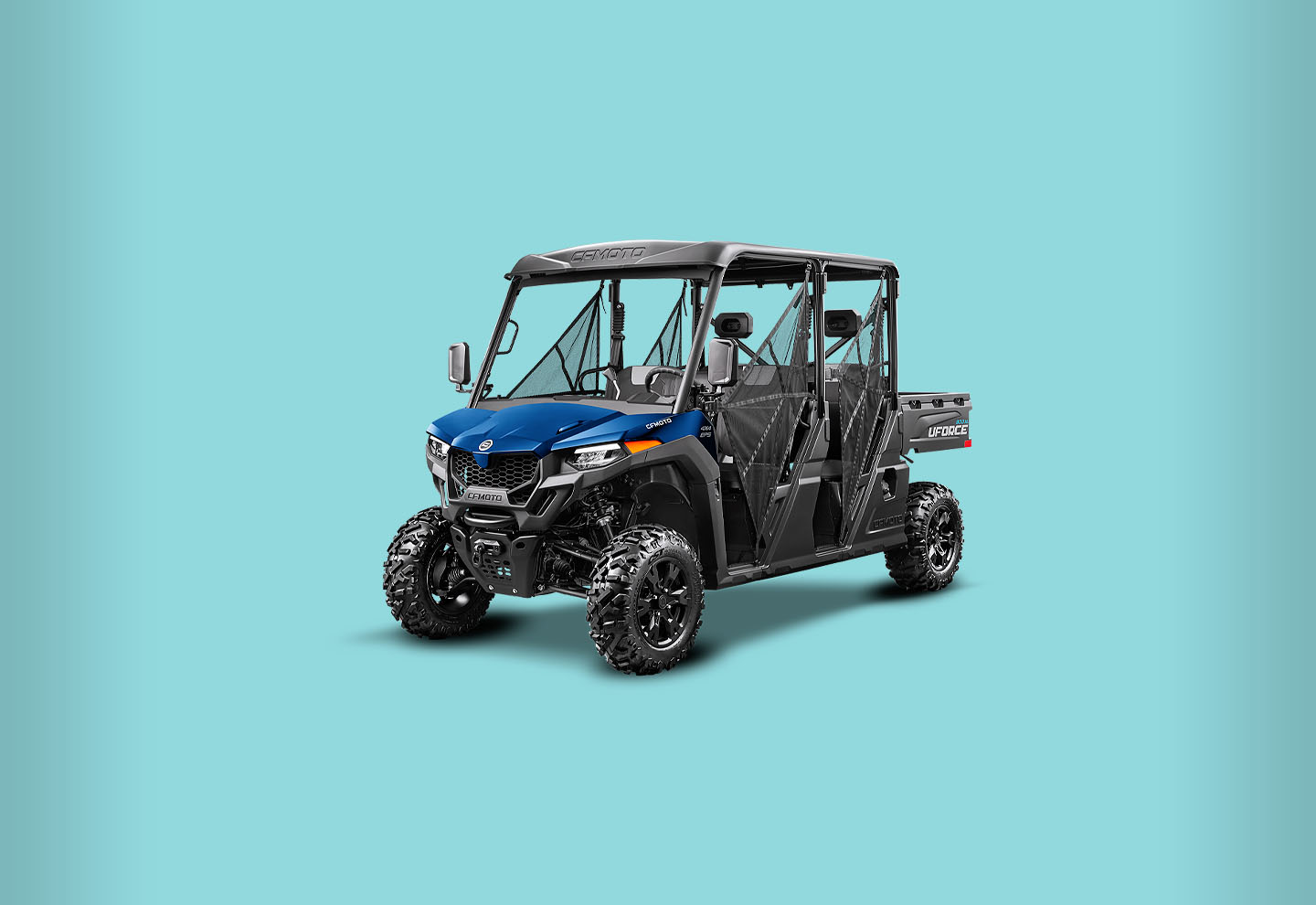

Introducing a new middleweight XL model to the range, the UFORCE 800 EPS XL.Based on the popular UFORCE 600 platform, the chassis has been extended and beefed up – including new suspension, steering components and greater ground clearance to accommodate the longer wheelbase. The result is a new mid-sized 4-seater UTV powered by CFMOTO’s 800cc V-twin engine and featuring an all-new CFMOTO CVT system – smoother driving, easier working.
The new middleweight XL model adds to the growing ‘crew’ range now customers have the choice of three attractive model offerings from CFMOTO.
MIDDLEWEIGHT 800
Introducing a new middleweight XL model to the range, the UFORCE 800 EPS XL.
Based on the popular UFORCE 600 platform, the chassis has been extended and beefed up – including new suspension, steering components and greater ground clearance to accommodate the longer wheelbase. The result is a new mid-sized 4-seater UTV powered by CFMOTO’s 800cc V-twin engine and featuring an all-new CFMOTO CVT system – smoother driving, easier working.
The new middleweight XL model adds to the growing ‘crew’ range now customers have the choice of three attractive model offerings from CFMOTO.
V-TWIN POWER
Bigger power, with an 800cc V-twin engine producing 65hp to easily move your crew and more. The UFORCE 800 XL features ride-by-wire technology and has two power modes, NORMAL or WORK for a smooth and workable power output.A new centre positioned air-intake and a new exhaust system to maximise performance.
CFMOTO CVT
CFMOTO in-house design for smoother driving, easier working. Enhanced CVT cooling, improved belt life and electronic driver alert.Low-Speed Smoothness:
CFMOTO ‘s CVT System provides an ultra-smooth driving experience at low speeds.Optimised Slider Design:
Steel sliders are used instead of nylon sliders, significantly reducing the impact of temperature variations on performance and longevity.Efficient Temperature Regulation:
The CVT maintains an optimal internal temperature, tailored specifically for a Gross Vehicle Weight of 1.7 tons, outperforming competitors with internal temperatures kept below 95°C.ROOM FOR 4
Dual bench seat configuration with room to fit four adults, comfortably.Handy integrated USB/12V outlets are located both front and rear, plus plenty of accessible storage areas for the crew on board.

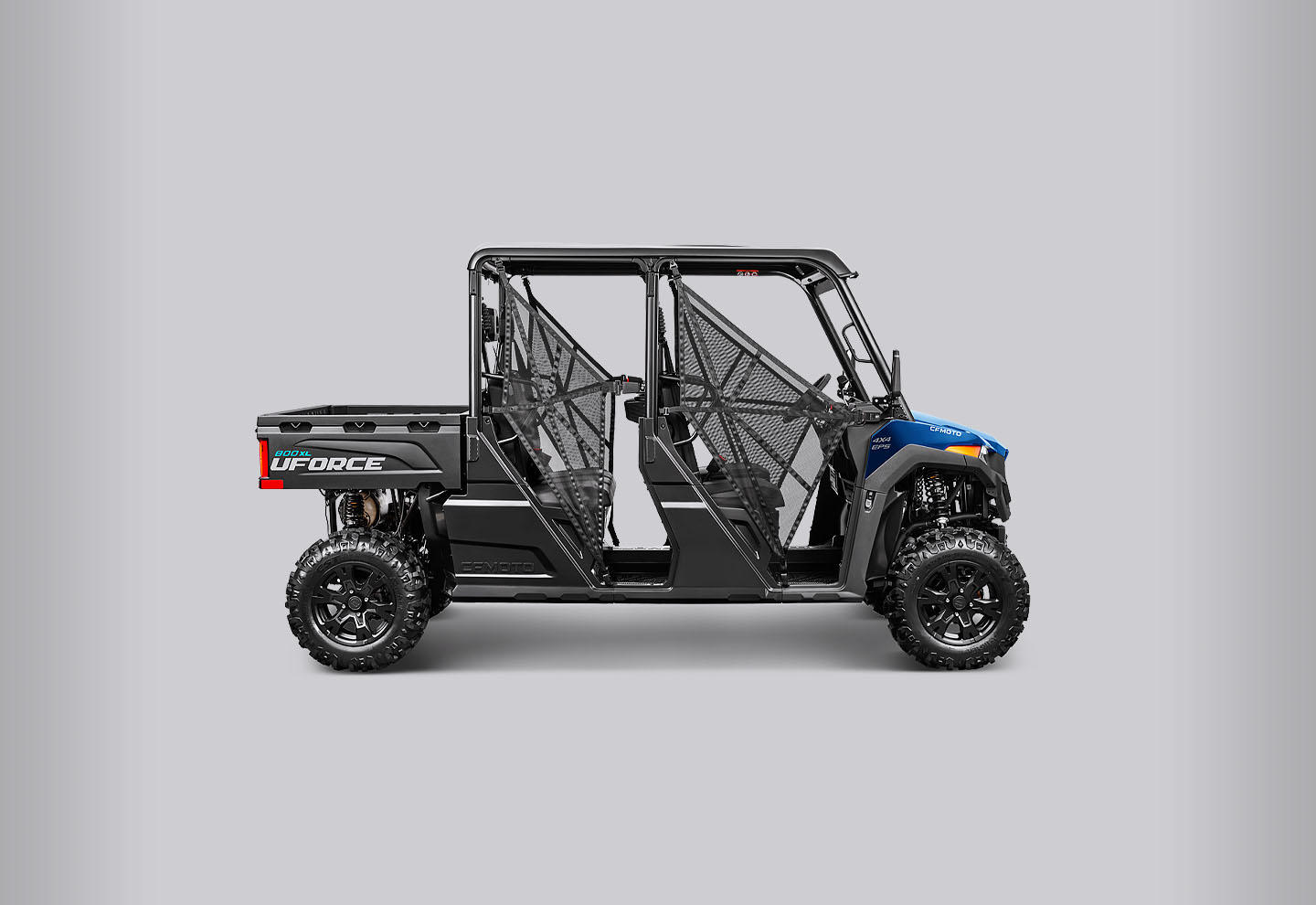

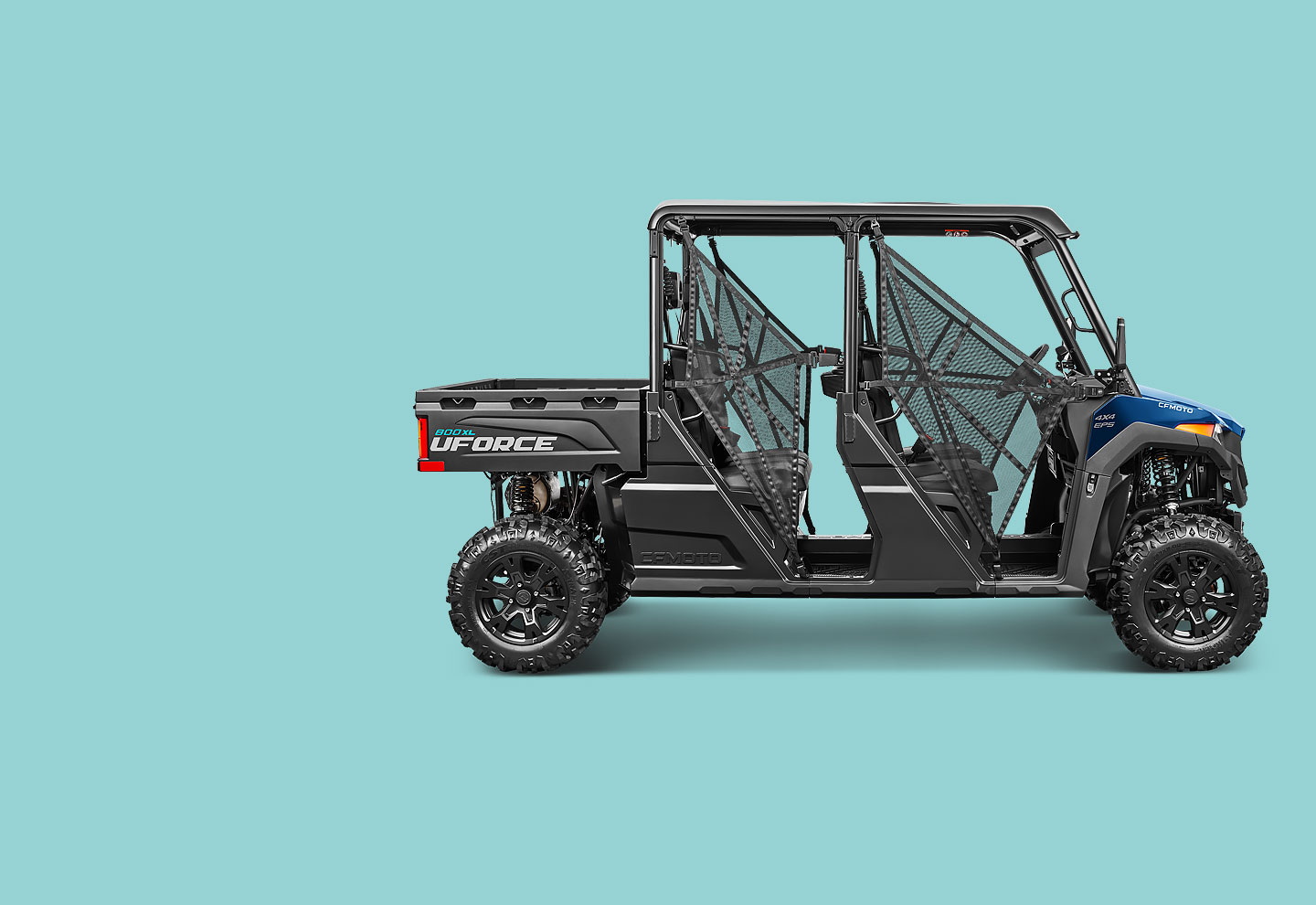

LONG WHEELBASE
Larger 27-inch tyres and increased suspension travel have lifted the long wheelbase UTV to provide a greater ground clearance of 300mm.TOUGHER STEERING AND SUSPENSION
CFMOTO has factored in the increased stresses on the XL with stiffer springs and more robust steering components.TIME TO WORK

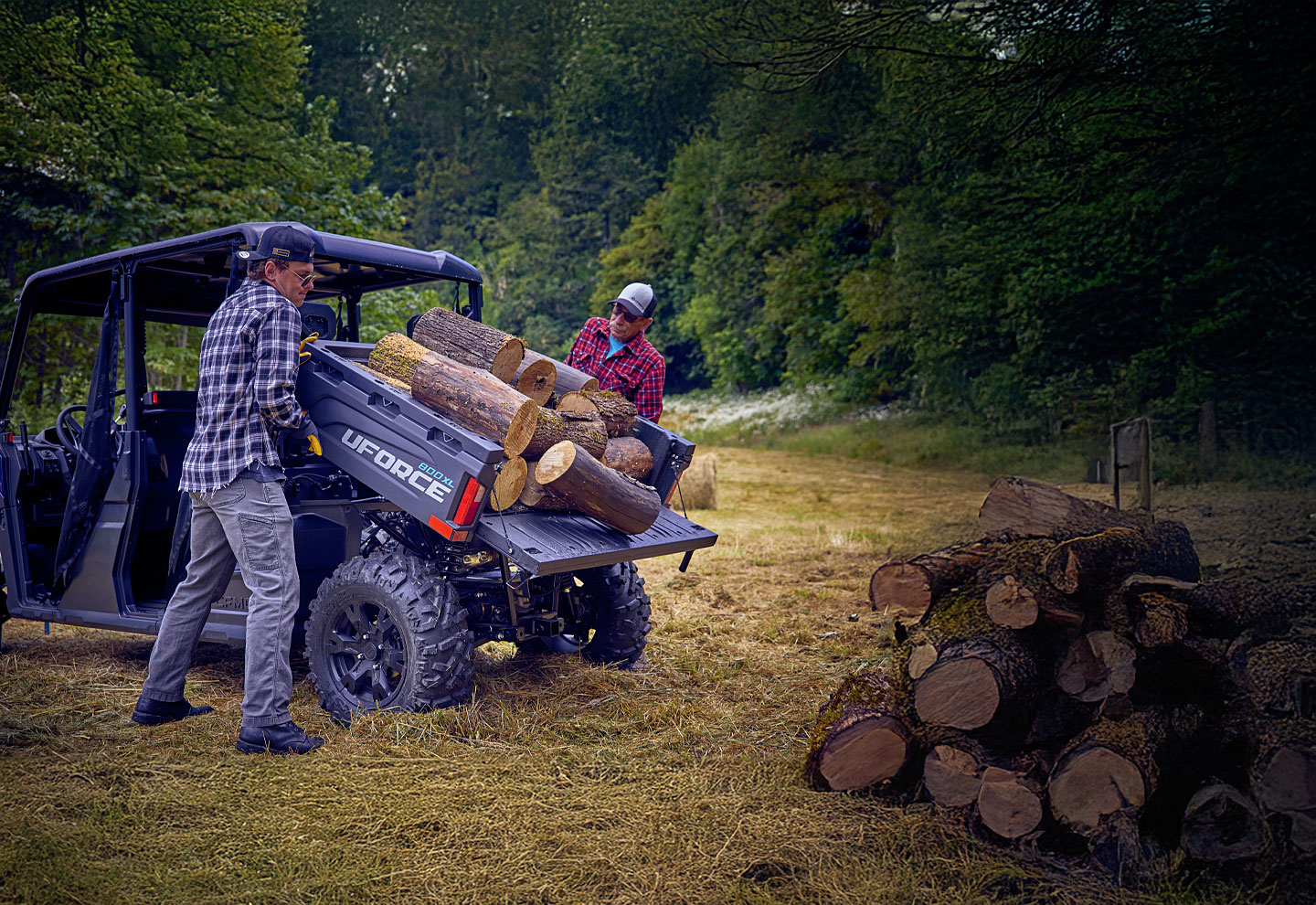

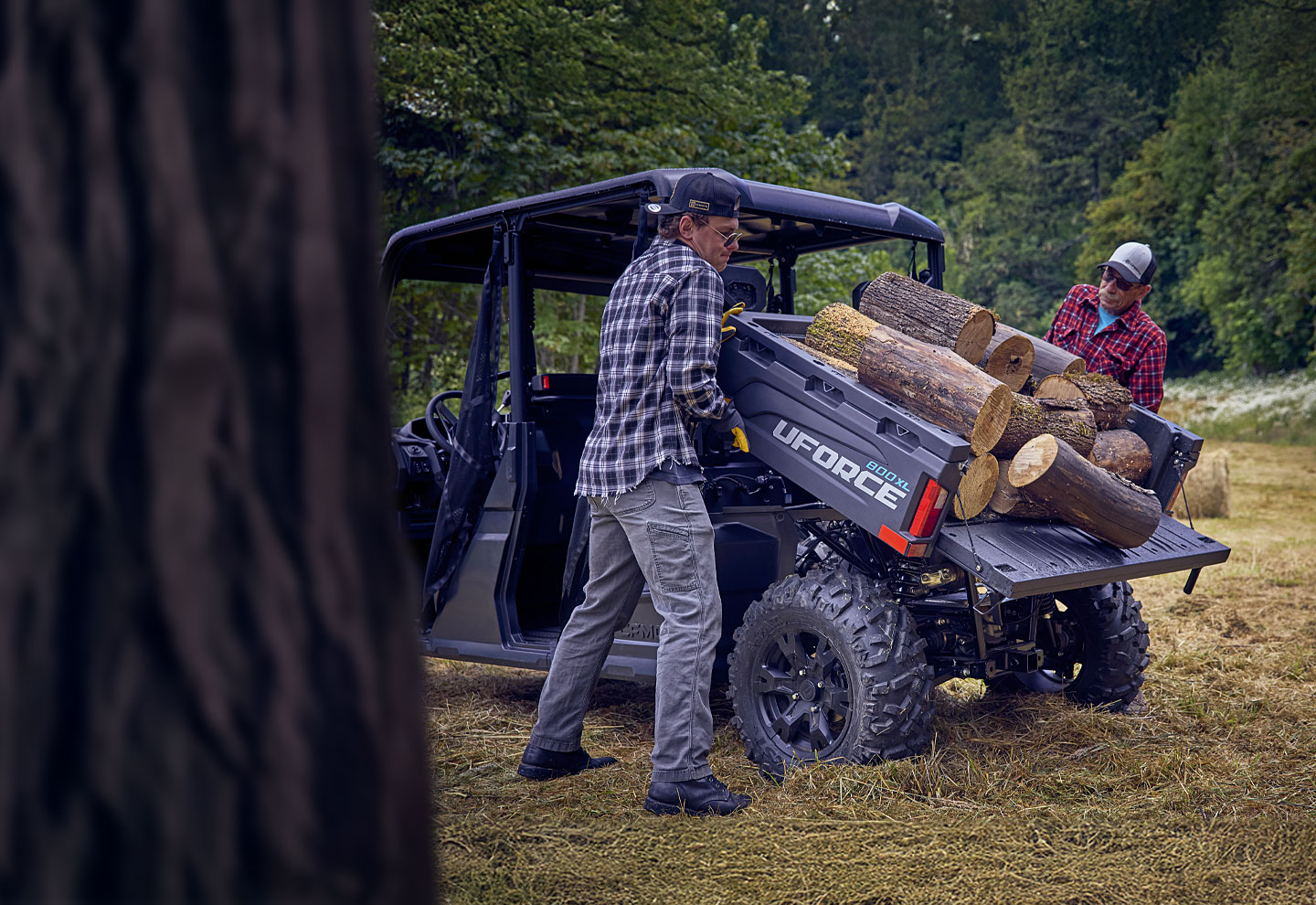

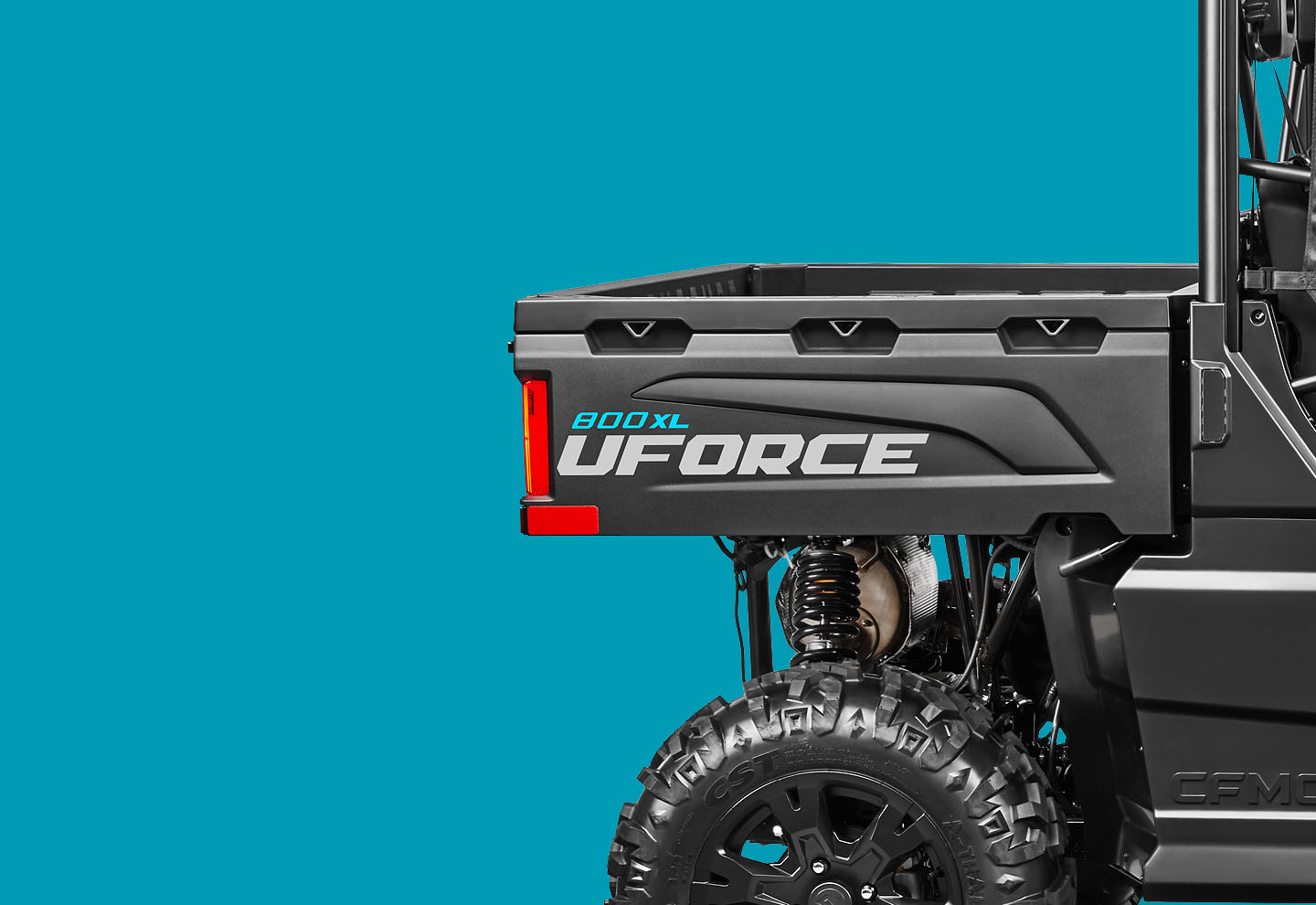

680kg tow capacity and a 300kg rear cargo tray capacity make the UFORCE 800 XL a serious addition to any workplace. A big 40 litre tank allows for greater range and less fill ups when on the job.SUPPORT
YOU CAN TRUST
CFMOTO is a brand you can rely on. The UFORCE 800 EPS XL is backed by a two year warranty and supported by a national dealer network to keep you going 24/7.MODEL
HIGHLIGHTS
- 63hp, 800cc, fuel-injected, liquid-cooled, four-stroke V-twin engine- Bosch electronic fuel injection (EFI)
- Two drive modes: Normal or Work
- CFMOTO CVT System
- Electronic hill descent control
- Electronic power steering (EPS)
- Selectable 2WD/4WD
- Push button-locking front differential
- Dual A-Arm independent suspension
- Four-wheel hydraulic disc brakes
- 14-inch alloy wheels
- 27-inch eight-ply CST tyres
- Dual bench seat to accommodate four
- Driver seat adjustability
- Large 40-litre fuel tank
- Large gas-assisted tipping cargo tray
- CFMOTO roof kit
- 5-inch digital dash
- 680kg towing capacity
- 300 kg rear tray carrying capacity
- 4500lb synthetic rope winch
- Tow package, indicators, horn and mirrors
- Available in Twilight Blue
- Two-year warranty
V-TWIN POWER
Bigger power, with an 800cc V-twin engine producing 65hp to easily move your crew and more. The UFORCE 800 XL features ride-by-wire technology and has two power modes, NORMAL or WORK for a smooth and workable power output.A new centre positioned air-intake and a new exhaust system to maximise performance.
CFMOTO CVT
CFMOTO in-house design for smoother driving, easier working. Enhanced CVT cooling, improved belt life and electronic driver alert.Low-Speed Smoothness:
CFMOTO ‘s CVT System provides an ultra-smooth driving experience at low speeds.Optimised Slider Design:
Steel sliders are used instead of nylon sliders, significantly reducing the impact of temperature variations on performance and longevity.Efficient Temperature Regulation:
The CVT maintains an optimal internal temperature, tailored specifically for a Gross Vehicle Weight of 1.7 tons, outperforming competitors with internal temperatures kept below 95°C.
LONG WHEELBASE
Larger 27-inch tyres and increased suspension travel have lifted the long wheelbase UTV to provide a greater ground clearance of 300mmROOM FOR 4
Dual bench seat configuration with room to fit four adults, comfortably.Handy integrated USB/12V outlets are located both front and rear, plus plenty of accessible storage areas for the crew on board.
TIME TO WORK
680kg tow capacity and a 300kg rear cargo tray capacity make the UFORCE 800 XL a serious addition to any workplace. A big 40 litre tank allows for greater range and less fill ups when on the job.TOUGHER STEERING AND SUSPENSION
CFMOTO has factored in the increased stresses on the XL with stiffer springs and more robust steering components.
WELL-ROUNDED PACKAGE
The UFORCE 800 XL adds to the range with superior power, greater versatility, enhanced comfort and now with room to carry four.
SUPPORT YOU
CAN TRUST
CFMOTO is a brand you can rely on. The UFORCE 800 EPS XL is backed by a two year warranty and supported by a national dealer network to keep you going 24/7.
SPECIFICATIONS
SPECIFICATIONS
| Engine type: | V-twin, liquid cooled, 4-stroke, SOHC, 8-valve | Displacement: | 800cc | Maximum power: | 63hp at 7,000rpm | Maximum torque: | 69.8Nm at 5,500rpm | Fuel system: | Bosch EFI with two power modes NORMAL or WORK | Transmission: | CFMOTO CVT | Drive: | H-L-N-R-Park | 4WD: | 2WD/4WD | Differential: | Fixed rear differential | Downhill Assist: | Electronic assist hill descent control (DAC) | Steering: | Power steering (EPS) | |
